Part Number : LM2901N
Function : LOW POWER QUAD VOLTAGE COMPARATOR
Manufacturer : STMicroelectronics

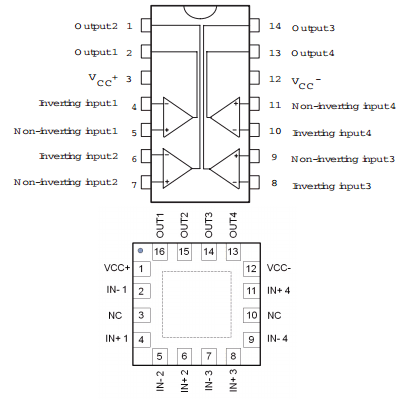

Pinout :
Description
Features
■ Wide single supply voltage range or dual
supplies for all devices: +2 to +36 V or ±1 V to
±18 V
■ Very low supply current (1.1 mA) independent of supply voltage
■ Low input bias current: 25 nA typ
■ Low input offset current: ±5 nA typ
■ Low input offset voltage: ±1 mV typ
■ Input common-mode voltage range includes ground
■ Low output saturation voltage: 250 mV typ; (ISINK= 4 mA)
■ Differential input voltage range equal to the supply voltage
■ TTL, DTL, ECL, MOS,CMOS compatible outputs
