Part Number : LF444CN
Function :Low power JFET input operational amplifier
Manufacturer : Motorola => Freescale

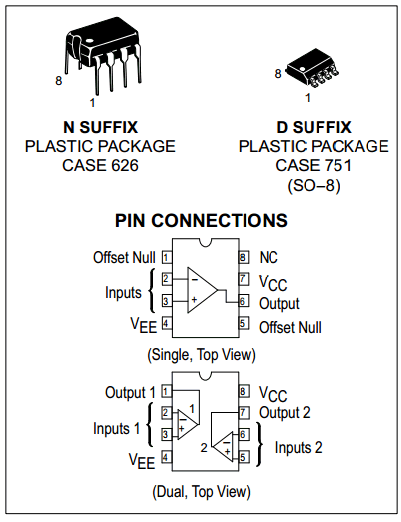

LF444CN Pinout
Description
Description
These JFET input operational amplifiers are designed for low power applications. They feature high input impedance, low input bias current and low input offset current. Advanced design techniques allow for higher slew rates, gain bandwidth products and output swing. The LF441C device provides for the external null adjustment of input offset voltage.
These devices are specified over the commercial temperature range. All are available in plastic dual in–line and SOIC packages.
Features
• Low Supply Current: 200 µA/Amplifier
• Low Input Bias Current: 5.0 pA
• High Gain Bandwidth: 2.0 MHz
• High Slew Rate: 6.0 V/µs
• High Input Impedance: 1012 Ω
• Large Output Voltage Swing: ±14 V
• Output Short Circuit Protection
LF444CN Datasheet PDF Download
Other datasheets in the file : LF441CD, LF441CN, LF442CD, LF442CN
