Part Number : LC75833E
Function : 1/3 Duty General-Purpose LCD Display Drivers
Manufacturer : SANYO -> Panasonic

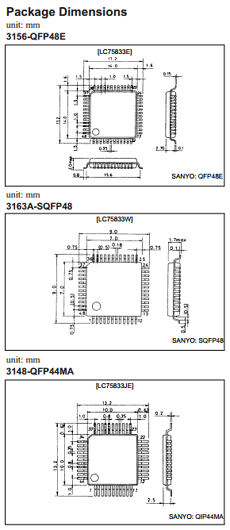

Pinout :
Description
The LC75833E, LC75833W, and LC75833JE are 1/3-duty general-purpose LCD display drivers that can be used for frequency display in electronic tuners under the control of a microcontroller. The LC75833E and LC75833W can drive an LCD with up to 105 segments directly, the LC75833JE can drive an LCD with up to 93 segments directly.
The LC75833E and LC75833W and LC75833JE can also control up to 8 general-purpose output ports. Since the LC75833E, LC75833W, and LC75833JE use separate power supply systems for the LCD drive block and the logic block, the LCD driver block power-supply voltage can be set to any voltage in the range 2.7 to 6.0 volts, regardless of the logic block power-supply voltage.
Datasheet PDF Download
Other datasheets in the file :
LC75833E,LC75833JE,LC75833W,LC75873NW
