Part Number : K3569
Function : Silicon N Channel MOS FET
Manufacturer : Toshiba

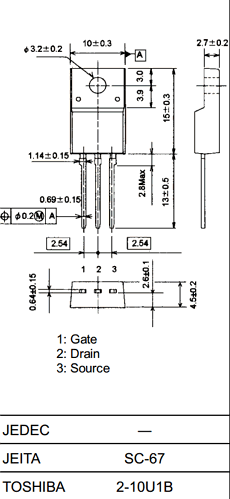

Pinout :
Description
Switching Regulator Applications
• Low drain-source ON resistance: RDS (ON)= 0.54Ω(typ.)
• High forward transfer admittance: |Yfs| = 8.5S (typ.)
• Low leakage current: IDSS= 100 μA (VDS= 600 V)
• Enhancement-mode: Vth= 2.0~4.0 V (VDS= 10 V, ID= 1 mA)
Datasheet PDF Download
Other datasheets in the file :
2SK3569,K3569
