Part Number : K3568
Function : TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI)
Manufacturer : Toshiba

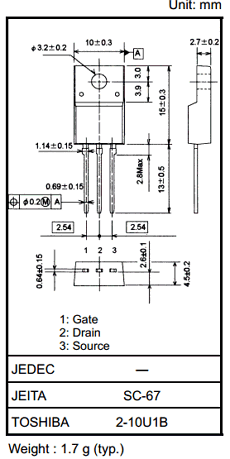

Pinout :
Description
Switching Regulator Applications
• Low drain-source ON-resistance: RDS (ON)= 0.4 Ω(typ.)
• High forward transfer admittance: |Yfs| = 8.5 S (typ.)
• Low leakage current: IDSS= 100 μA (VDS= 500 V)
• Enhancement mode: Vth= 2.0 to 4.0 V (VDS= 10 V, ID= 1 mA)
Datasheet PDF Download
Other datasheets in the file :
2SK3568,K3568
