Part Number : ICL8038

Function : Precision Waveform Generator/Voltage Controlled Oscillator FN2864.3

Manufacturer : Intersil

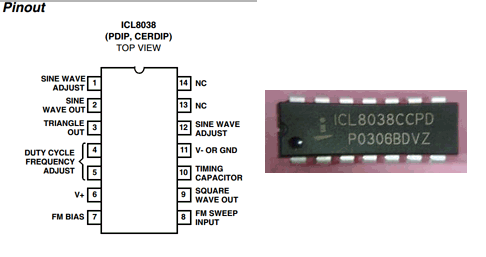

Pinout :

ICL8038 datasheet

  • Low Frequency Drift with Temperature 250ppm/’C
  • Low Distortion 1%(SineWave Output)
  • High Linearity 0.1%(Triangle Wave Output)
  • Wide Frequency Range 0.001Hz to 300kHz
  • Variable Duty Cycle 2%to 98%
  • High Level Outputs TTL to 28V
  • Simultaneous Sine, Square, and Triangle Wave Outputs
  • Easy to Use – Just a Handful of External Components Required



Description

The ICL8038 waveform generator

is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms with a minimum of external components. The frequency (or repetition rate) can be selected externally from 0.001Hz to more than 300kHz using either resistors or capacitors, and frequency modulation and sweeping can be accomplished with an external voltage.



ICL8038 Datasheet PDF Download

ICL8038 pdf

Other datasheets in the file : ICL8038ACJD, ICL8038BCJD, ICL8038CCJD, ICL8038CCPD
