Part Number : HMC832
Function :Fractional-N PLL with Integrated VCO 25 MHz to 3000 MHz
Manufacturer : Analog Devices

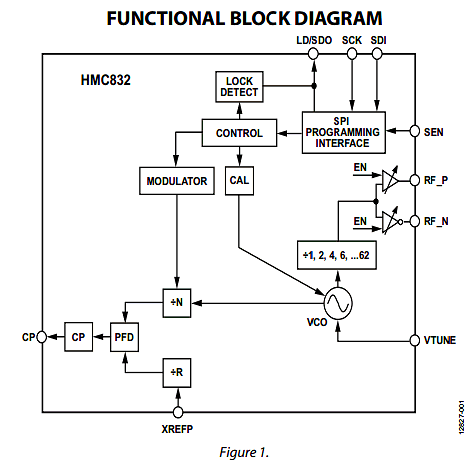

Pinout :
Description
The HMC832 is a 3.3 V, high performance, wideband, fractional-N, phase-locked loop (PLL) that features an integrated voltage controlled oscillator (VCO) with a fundamental frequency of 1500 MHz to 3000 MHz, and an integrated VCO output divider (divide by 1/2/4/6/…60/62), that enables the HMC832 to generate continuous frequencies from 25 MHz to 3000 MHz. The integrated phase detector (PD) and delta-sigma (Δ-Σ) modulator, capable of operating at up to 100 MHz, permit wider loop bandwidths and faster frequency tuning with excellent spectral performance.
Datasheet PDF Download
Other datasheets in the file : EKIT01-HMC832LP6G,EVAL01-HMC832LP6G,HMC832,HMC832LP6GE,HMC832LP6GETR
