Part Number : HEF4585B
Function : 4-bit magnitude comparator
Manufacturer : NXP Semiconductors.

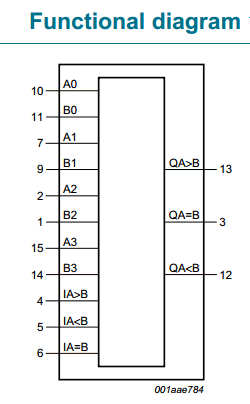

Pinout :
Description
The HEF4585B is a 4-bit magnitude comparatorthat compares two 4-bit words, A and B, and determines whether A is greater than B, A is equal to B, or A is less than B. Each word has four parallel inputs (A0 to A3 and B0 to B3) with A3 and B3 being the most significant inputs.
Datasheet PDF Download
Other datasheets in the file :
4585B,4585BP,4585BT,HEF4585B,HEF4585BP
