HD74HC564P Schematic

Part Number : HD74HC564P

Function :Octal D-type Flip-Flops (with 3-state outputs)

Manufacturer : Hitachi -> Renesas Electronics

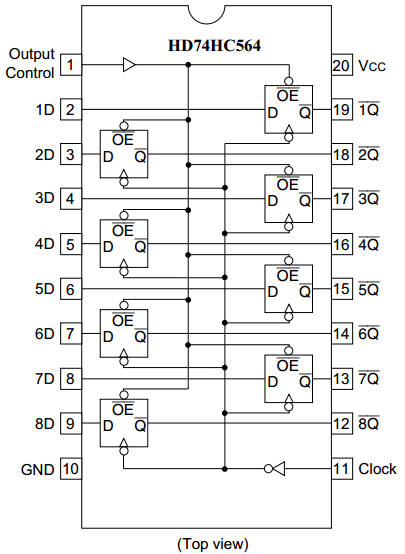

Pinout :
HD74HC564P datasheet

Description

These devices are positive edge triggered flip-flops.

The difference between HD74HC564 and HD74HC574 is only that the former has inverting outputs and the latter has noninvertering outputs.

Datasheet PDF Download

HD74HC564P pdf

Other datasheets in the file : HD74HC564,HD74HC564P,HD74HC574,HD74HC574P
