Part Number : HA13614FH
Function : Combo (Spindle & VCM) Driver / Small surface mount package: FP-48T
Manufacturer : Hitachi -> Renesas Electronics

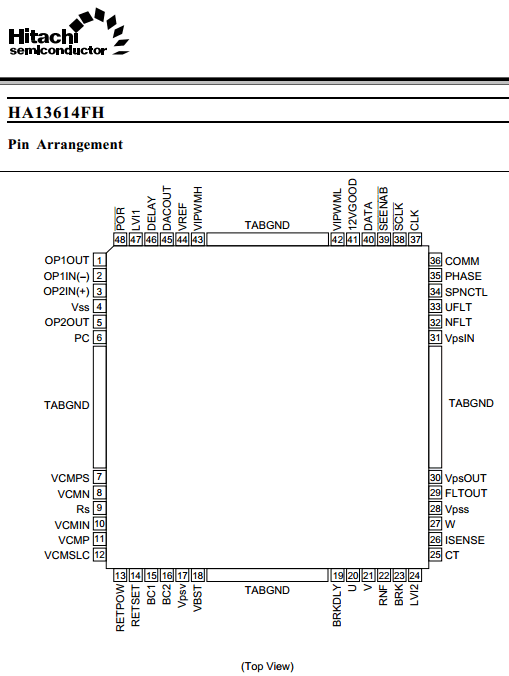

Pinout :
Description
This COMBO driver for HDD application consists of sensorless spindle driver and BTL type VCM driver.
“PWM soft switching function” for low power dissipation and less commutation acoustic noise at the same time is implemented by using the IPIC* process.
Datasheet PDF Download
Other datasheets in the file :
HA13614FH
