Part Number : H11D1
Function : HIGH VOLTAGE PHOTOTRANSISTOR OPTOCOUPLERS
Manufacturer : Fairchild Semiconductor

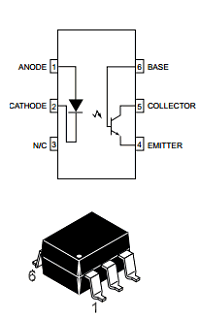

Pinout :
Description
DESCRIPTION
The H11DX and 4N38 are phototransistor-type optically coupled optoisolators. An infrared emitting diode manufactured from specially grown gallium arsenide is selectively coupled with a high voltage NPN silicon phototransistor. The device is supplied in a standard plastic six-pin dual-in-line package.
FEATURES
• High Voltage
– H11D1, H11D2, BVCER= 300 V
– H11D3, H11D4, BVCER= 200 V
• High isolation voltage
– 5300 VAC RMS – 1 minute
– 7500 VAC PEAK – 1 minute
• Underwriters Laboratory (UL) recognized File# E90700
APPLICATIONS
•Power supply regulators
•Digital logic inputs
•Microprocessor inputs
•Appliance sensor systems
•Industrial controls
