Part Number : G80N60UFD
Function : SGH80N60UFD, G80N60UFD / Ultrafast IGBT
Manufacturer : Fairchild Semiconductor

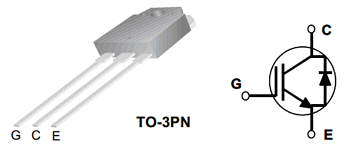

Pinout :
Description
Fairchild’s UFD series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses.
The UFD series is designed for applications such as motor control and general inverters where high speed switching is a required feature.
Datasheet PDF Download
Other datasheets in the file :
G80N60UFD,SGH80N60UFD
