Part Number : DRV8838
Function : DRV883x Low-Voltage H-Bridge Driver / WSON (8) Package
Manufacturer : Texas Instruments

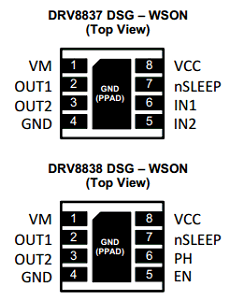

Pinout :
Description
The DRV883x provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices like solenoids.
The output driver block consists of N-channel power MOSFET’s configured
as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.
Datasheet PDF Download
Other datasheets in the file :
837,838,DRV8837DSGR,DRV8837DSGT,DRV8838
