D1557 Schematic

Part Number : D1557

Function :3DD1557 / D1557 / Low frequency amplification bipolar transistor

Manufacturer : Jilin Sino-Microelectronics

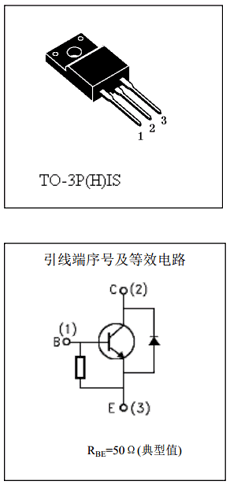

Pinout :
D1557 datasheet

Description

V cbo = 1700V

3DD1557 is a high back pressure NPN bipolar power transistor, manufacturing The main technology employed: high-pressure technology mesa, triplet Diffusion of technology, the use of plastic full encapsulation structure.

Reference Site :

http://monitor.espec.ws/section27/topic78212.html

Datasheet PDF Download

D1557 pdf

Other datasheets in the file : 3DD1557, D1557
