Part Number : CD4066B
Function : CMOS quad bilateral switch
Manufacturer : Texas Instruments
Pinout :
Description
The CD4066B is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals.
It is pin-for-pin compatible with the CD4016B, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signal-input range.
Datasheet PDF Download

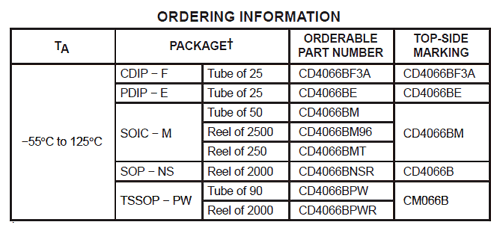

Other datasheets in the file :
CD4066B,CD4066BE,CD4066BF,CD4066BF3A,CD4066BM
