C828 transistor
C828 is TO-92 Package.
C828, 2SC828 is NPN Epitaxial Planar.

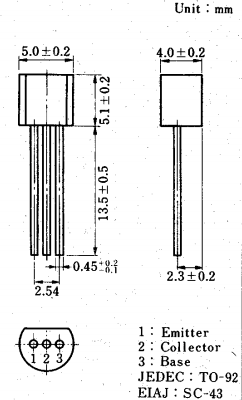

(JEDEC : TO-92, EIAJ : SC-43 Package)
Small Signal Amplifier, High h FE.
Absolute Maximum Ratings
2SC828 : Vcbo = 30V
2SC828A : Vcbo = 45V
2SC828 : Vceo = 25V
2SC828A : Vceo = 45V
Icp = 100ma, Ic = 50mA, Pc = 400mW
Classifications hfe (Q : 130 ~ 260, R : 180 ~ 360, S : 260 ~ 520)
