Part Number : C3356
Function : NPN Epitaxial Silicon RF Transistor for Microwave Low-Noise Amplification 3-pin Minimold
Manufacturer : Renesas Electronics

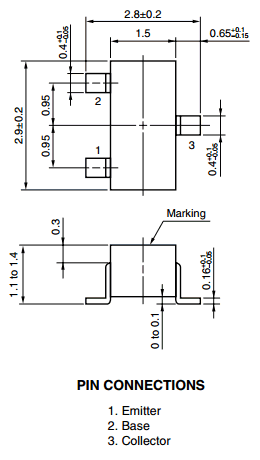

Pinout :
Description
* Low noise and high gain : NF = 1.1 dB TYP., Ga= 11 dB TYP. @ VCE= 10 V, IC= 7 mA, f = 1 GHz
* High power gain : MAG = 13 dB TYP. @ VCE= 10 V, IC= 20 mA, f = 1 GHz
Datasheet PDF Download
Other datasheets in the file :
2SC3356,2SC3356-A,2SC3356-T1B,2SC3356-T1B-A,C3356
