Part Number : BZV55-B

Function : Zener Diode

Manufacturer : NXP Semiconductors.

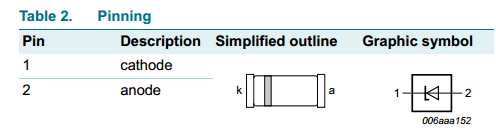

Pinout :

Description

1 General description
Low-power voltage regulator diodes in small hermetically sealed glass SOD80C
Surface-Mounted Device (SMD) packages.

The diodes are available in the normalized E242 % (BZV55-B) and approximately 5 % (BZV55-C) tolerance range.

The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.

2 Features and benefits
. Non-repetitive peak reverse power dissipation: 40 W
. Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
. Total power dissipation: 500 mW 
. Low differential resistance
. Two tolerance series: +-2%and +-5% 
. Small hermetically sealed glass SMD package
