Part Number : BDW47G
Function : Darlington Complementary Silicon Power Transistors
Manufacturer : ON Semiconductor

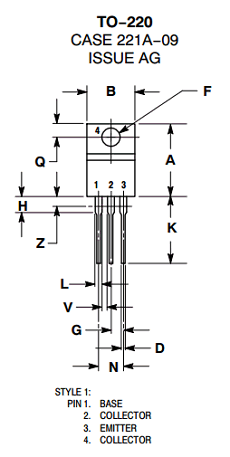

Pinout :
Description
This series of plastic, medium−power silicon NPN and PNP Darlington transistors are designed for general purpose and low speed switching applications.
15 AMP DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS 80−100 VOLT, 85 WATT
Datasheet PDF Download
Other datasheets in the file :
BDW42,BDW42G,BDW46,BDW46G,BDW47G
