Part Number : BB809
Function : VHF variable capacitance diode
Manufacturer : Philips Electronics

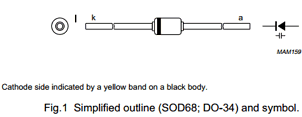

Pinout :
Description
FEATURES
• High linearity
• Matched to 3%
• Hermetically sealed leaded glass SOD68 (DO-34) package
• C28: 4.7 pF; ratio: 9
• Low series resistance.
APPLICATIONS
• Electronic tuning in VHF television tuners, band A up to 160 MHz
• VCO.
DESCRIPTION
The BB809 is a variable capacitance diode, fabricated in planar
technology, and encapsulated in the hermetically sealed leaded glass
SOD68 (DO-34) package.
