Part Number : BAV70
Function : DUAL SURFACE MOUNT SWITCHING DIODE
Manufacturer : Diodes Incorporated.

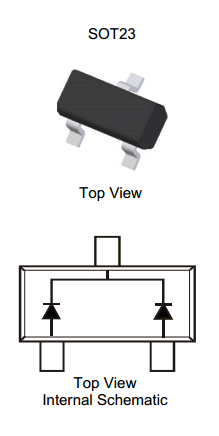

Pinout :
Description
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Conductance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Datasheet PDF Download
Other datasheets in the file :
BAV70,BAV70-13-F,BAV70-7-F,BAV70Q-13-F,BAV70Q-7-F
