Part Number : BAV70
Function : High-speed switching diodes
Manufacturer : NXP Semiconductors.

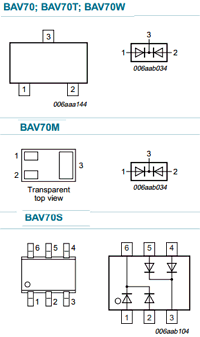

Pinout :
Description
High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD)
plastic packages.
High switching speed: trr ≤4ns
Low capacitance: Cd≤1.5 pF
Low leakage current
Reverse voltage: VR≤100 V
Small SMD plastic packages
Datasheet PDF Download
Other datasheets in the file :
BAV70,BAV70M,BAV70S,BAV70T,BAV70W
