Part Number : BAS70T
Function : 70V; 70mA surface mount schottky barrier diode. PN junction guard ring for transient and ESD protection
Manufacturer : Diodes Incorporated.

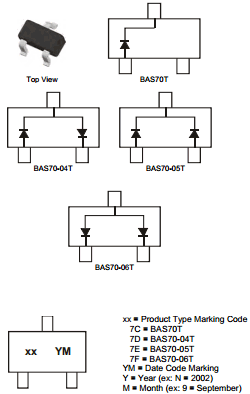

Pinout :
Description
Features
• Low Turn-on Voltage
• Fast Switching
• PN Junction Guard Ring for Transient and ESD Protection
• Ultra-Small Surface Mount Package
• Lead Free/RoHS Compliant
• “Green” Device
Mechanical Data
• Case: SOT-523
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Finish – Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
• Polarity: See Diagrams Below
• Weight: 0.002 grams (approximate)
Datasheet PDF Download
Other datasheets in the file :
BAS70-04T-7-F,BAS70-05T-7-F,BAS70-06T-7-F,BAS70T,BAS70T-04T
