Part Number : BAL99
Function : SURFACE MOUNT SWITCHING DIODE For General Purpose Switching Applications
Manufacturer : Diodes Incorporated.

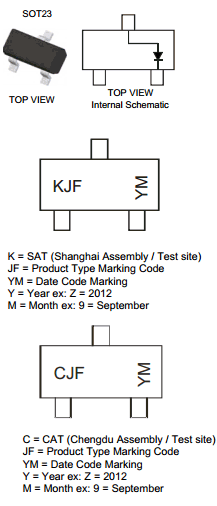

Pinout :
Description
Features
Fast Switching Speed: Maximum of 4ns
Low Forward Voltage: Maximum of 0.715V at 1mA
Low Capacitance: Maximum of 2pF
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
Polarity: See Diagram
Weight: 0.008 grams (approximate)
