Part Number : B1436
Function : Low Frequency Transistor ( -20V, -5A)
Manufacturer : ROHM Semiconductor

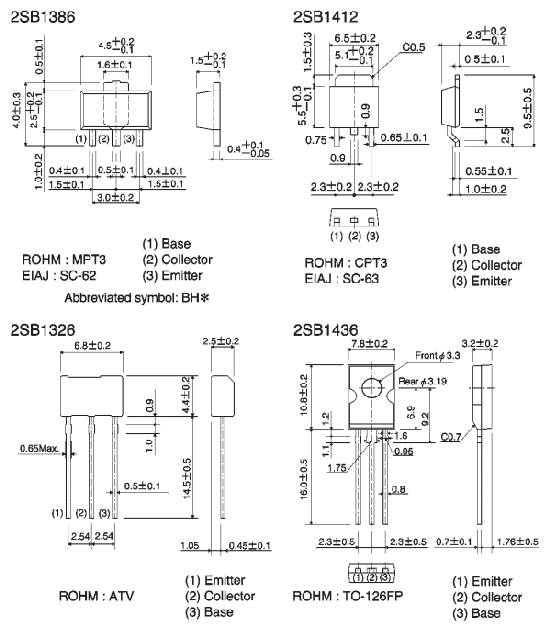

Pinout :
Description
1) Low VCE(sat).
VCE(sat)= 0.35V (Typ.) (IC/IB= 4A /0.1A)
2) Excellent DC current gain characteristics.
3) Complements the 2SD2098 / 2SD2118 / 2SD2097 / 2SD2166.
* Epitaxial planar type PNP silicon transistor
Datasheet PDF Download
Other datasheets in the file :
2SB1326,2SB1386,2SB1412,2SB1436,B1326
