Part Number : AM29F800BB-150
Function : 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 5.0 Volt-only, Boot Sector Flash Memory
Manufacturer : Advanced Micro Devices

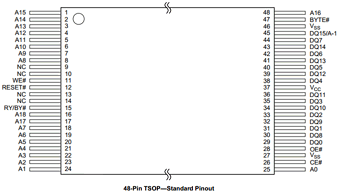

Pinout :
Description
GENERAL DESCRIPTION
The Am29F800B is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288words. The device is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–
DQ0. This device is designed to be programmed in system with the standard system 5.0 volt VCCsupply. A 12.0 V VPPis not required for write or erase operations. The device can also be programmed in standard EPROM programmers.
Datasheet PDF Download
Other datasheets in the file :
Am29F800BB-120,Am29F800BB-150,AM29F800BB-150ECB,AM29F800BB-150EE,AM29F800BB-150EEB
