Part Number : AIC1117A-33CT
Function : 1A Low Dropout Positive Adjustable Regulator
Manufacturer : Analog Intergrations

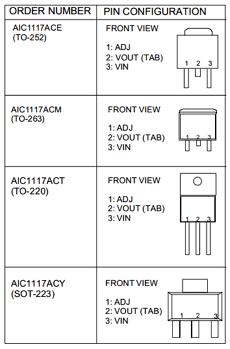

Pinout :
Description
The AIC1117Ais a low dropout three terminal regulator with 1A output current capability. The
output voltage is adjustable with the use of a resistor divider or fixed 2.85V, 3.3V, 5V .
Dropout is guaranteed at a maximum of 1. 5V at maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction te mperatures.
Datasheet PDF Download
Other datasheets in the file :
AIC1117A-28CM,AIC1117A-28CT,AIC1117A-33CT,AIC1117A-50CE,AIC1117A-50CY
