Part Number : ADG784
Function : CMOS 3V/5 V, Wide Bandwidth Quad 2:1 Mux in Chip Scale
Manufacturer : Analog Devices

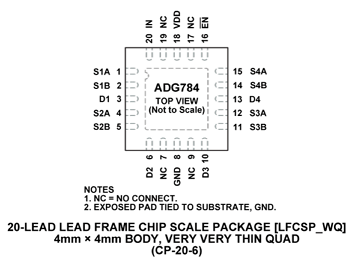

Pinout :
Description
The ADG784 is a monolithic CMOS device comprising four
2:1 multiplexer/demultiplexers with high impedance outputs.
The CMOS process provides low power dissipation yet gives
high switching speed and low on resistance. The on-resistance
variation is typically less than 0.5 Ω with an input signal ranging
from 0 V to 5 V.
Datasheet PDF Download
Other datasheets in the file :
ADG784,ADG784BCPZ,ADG784BCPZ-REEL,ADG784BCPZ-REEL7
