Part Number : AD823AR
Function : 36V; 0.9-1.3mW; dual 16MHz, rail-to-rail FET input amplifier
Manufacturer : Analog Devices

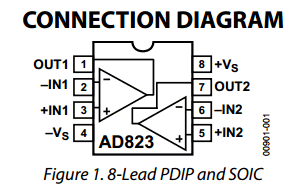

Pinout :
Description
FEATURES
Single-supply operation
Output swings rail-to-rail
Input voltage range extends below ground
Single-supply capability from 3 V to 36 V
High load drive
Capacitive load drive of 500 pF, G = +1
Output current of 15 mA, 0.5 V from suppli
Excellent ac performance on 2.6 mA/amplifie
−3 dB bandwidth of 16 MHz, G = +1
350 ns settling time to 0.01% (2 V step)
Slew rate of 22 V/µs
Good dc performance
800 µV maximum input offset voltage
2 µV/°C offset voltage drift
Datasheet PDF Download
Other datasheets in the file :
AD823AN,AD823ANZ,AD823AR,AD823AR-EBZ,AD823AR-REEL
