Part Number : AD811AR-16
Function : High performance video operational amplifier
Manufacturer : Analog Devices

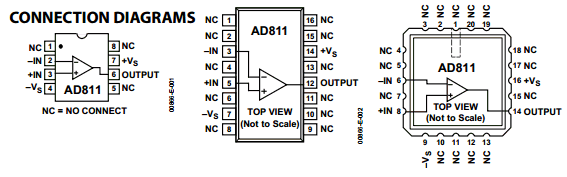

Pinout :
Description
EATURES
High speed
140 MHz bandwidth (3 dB, G = +1)
120 MHz bandwidth (3 dB, G = +2)
35 MHz bandwidth (0.1 dB, G = +2)
2500 V/μs slew rate
25 ns settling time to 0.1% (for a 2 V step)
65 ns settling time to 0.01% (for a 10 V step)
Excellent video performance (RL=150 Ω)
0.01% differential gain, 0.01° differential phase
