Part Number : ACM4001A
Function : 0.0-6.5V; 5x7dots with cursor; 40characters x 1lines; dot size0.60×0.65mm; dot pitch0.70×0.75mm; AZ display
Manufacturer : AZ Displays
Pinout :
Description
* Number of Characters : 40 characters x 1 line
* Character Format : 5 x 7 dots with cursor

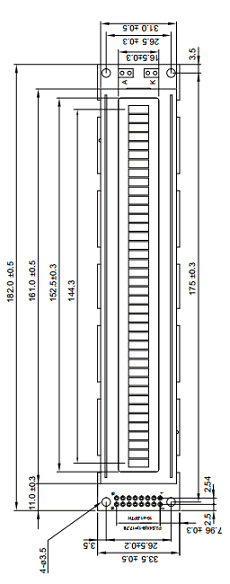

* Overall Module Size (W x H x D) :
182.0x 33.5x max 14.5for LED backlight version
182.0x 33.5x max 9.5for reflective or EL backlight version
* Dot Size (W x H) :0.60x 0.65
* Dot Pitch (W x H) : 0.70x 0.75
* Duty : 1/11
* Controller IC : KS0066
* LC Fluid Options : STN
* Polarizer Options: Reflective, Transflective, Transmissive
* Backlight Options : EL, LED
* Temperature Range Options : Standard, Wide temp
Datasheet PDF Download
Other datasheets in the file :
ACM4001A,ACM4001A-FEBD-T,ACM4001A-FEBH-T,ACM4001A-FEBW-T,ACM4001A-FEFH-T
