Part Number : 7MBR35SB-120
Function : IGBT PIM 1200V 6x35A+Chopper
Manufacturer : Fuji Electric

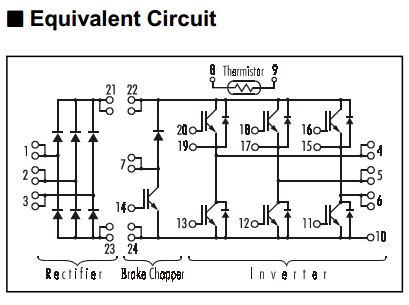

Pinout :
Description
Power Integrated Module (PIM)
• NPT-Technology
• Solderable Package
• Square SC SOA at 10 x IC
• High Short Circuit Withstand-Capability
• Small Temperature Dependence of the Turn-Off Switching Loss
• Low Losses And Soft Switching
Datasheet PDF Download
