Part Number : 7MBR15SA120
Function : IGBT module (S series) / 1200V / 15A / PIM
Manufacturer : Fuji Electric

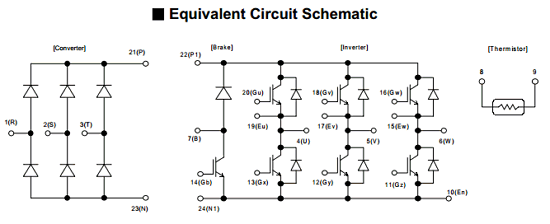

Pinout :
Description
* Low VCE(sat)
* Compact package
* P.C. board mount
* Converter diode bridge, Dynamic brake circuit
Datasheet PDF Download
Other datasheets in the file :
7MBR15SA120,7MBR15SA120D-01
