Part Number : 74LS266
Function :QUADRUPLE 2-INPUT EXCLUSIVE-NOR GATES WITH OPEN-COLLECTOR OUTPUTS
Manufacturer : Texas Instruments

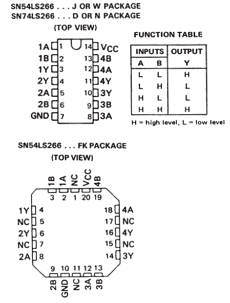

Pinout :
Description
The 74LS266 is comprised of four independent 2-input exclusive-NOR gates with open-collector outputs. The open-collector outputs permit tying outputs together for multiple-bit comparisions.
Datasheet PDF Download
Other datasheets in the file :
54LS266, 74266, 74LS266, 74LS266D, 74LS266N
