Part Number : 74LS174
Function : Hex D flip-flop / LOW POWER SCHOTTKY
Manufacturer : Motorola => Freescale

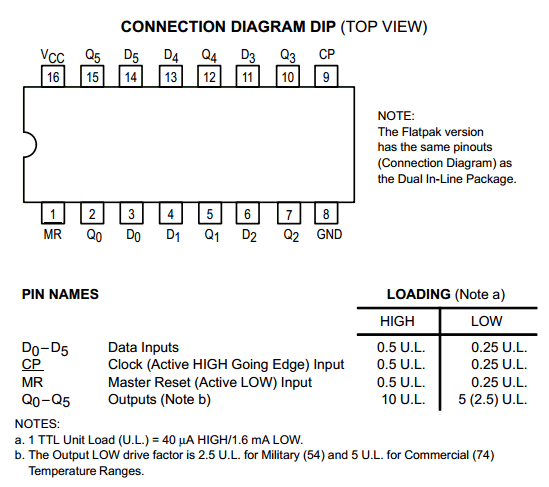

Pinout :
Description
The LSTTL /MSI SN54 /74LS174 is a high speed Hex D Flip-Flop. The device is used primarily as a 6-bit edge-triggered storage register. The information on the D inputs is transferred to storage during the LOW to HIGH clock transition. The device has a Master Reset to simultaneously clear all flip-flops. The LS174 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.
• Edge-Triggered D-Type Inputs
• Buffered-Positive Edge-Triggered Clock
• Asynchronous Common Reset
• Input Clamp Diodes Limit High Speed Termination Effects
Datasheet PDF Download
Other datasheets in the file :
54LS174,74LS174,SN54LS174,SN54LS174J,SN74LS174
