Part Number : 74LCX16501
Function : 18-Bit Universal Bus Transceivers with 5VTolerant Inputs and Outputs
Manufacturer : Fairchild Semiconductor

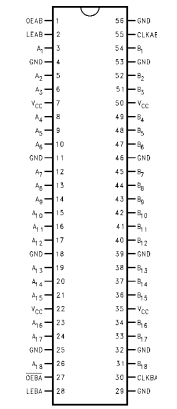

Pinout :
Description
The LCX16501 is an 18-bit universal bus transceiver combining D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes.
■ 5V tolerant inputs and outputs
■ 2.3V–3.6V VCCspecifications provided
■ 6.0 ns tPDmax (VCC =3.3V), 20 µA ICCmax
■ Power down high impedance inputs and outputs
■ Supports live insertion/withdrawal (Note 1)
