Part Number : 74HC688N
Function : 8-bit magnitude comparator
Manufacturer : Philips Electronics

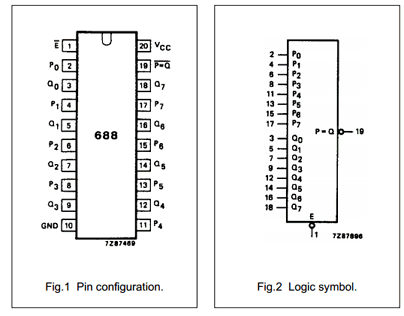

Pinout :
Description
GENERAL DESCRIPTION
The 74HC/HCT688 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
FEATURES
• Compare two 8-bit words
• Output capability: standard
• ICCcategory: MSI
Datasheet PDF Download
Other datasheets in the file :
74HC688D,74HC688DB,74HC688N,74HC688PW,74HCT688D
