Part Number : 74HC4075
Function : DUAL 2 WIDE 2 INPUT AND/OR INVERT GATE
Manufacturer : STMicroelectronics

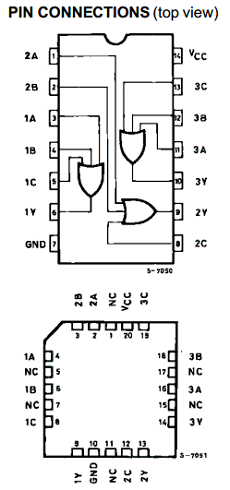

Pinout :
Description
The M54/74HC4075 is a high speed CMOS TRIPLE 3-INPUT OR GATE fabricated in silicon gate
C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS
low power consumption.
The internal circuit is composed of 4 stages including buffered output, which gives high noise
immunity and a stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
Datasheet PDF Download
Other datasheets in the file :
54HC4075,74HC4075,M54HC4075,M54HC4075F1R,M74HC4075
