Part Number : 74ETL16245
Function : Transceiver with Incident Wave Switching / 48-pin SSOP and ceramic flatpak
Manufacturer : National ->Texas Instruments

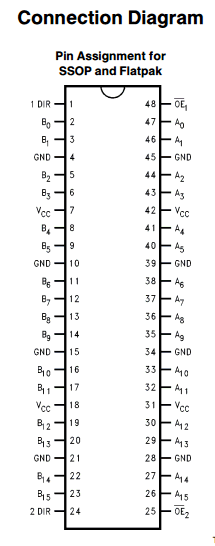

Pinout :
Description
The 54/74ETL16245 contains sixteen non-inverting bidirectional buffers with TRI-STATEÉoutputs designed with incident wave switching, live insertion support and enhanced noise margin for TTL backplane applications.
Both the A and B ports include a bus hold circuit to latch the output to the value last forced on that pin.
The B port of this device includes 25Xseries output resistors, which minimize undershoot and ringing.
– Supports the VME64 ETL specification
– Functionally and pin compatible with industry standard TTL 16245 SSOP pinout
Acquired by Texas Instruments on September 23rd, 2011.
Datasheet PDF Download
Other datasheets in the file :
54ETL16245,54ETL16245FPFPCX,54ETL16245SSCX,54ETL16245SSMX,74ETL16245
