Part Number : 74AC16244
Function : 16-Bit Buffer/Line Driver with 3-STATE Outputs
Manufacturer : Fairchild Semiconductor

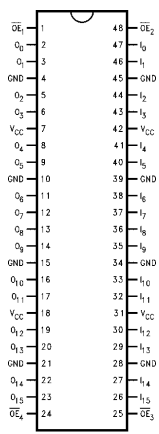

Pinout :
Description
General Description
The AC16244 and ACT16244 contain sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented
transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.
Features
■Separate control logic for each byte and nibble
■16-bit version of the AC244/ACT244
■Outputs source/sink 24 mA
■ACT16244 has TTL-compatible inputs
