Part Number : 60J323
Function : N Channel IGBT
Manufacturer : Toshiba
Pinout :
Description
Current Resonance Inverter Switching Application
• Enhancement mode type
• High speed : tf= 0.16 μs (typ.) (IC= 60A)
• Low saturation voltage: VCE (sat)= 1.9 V (typ.) (IC= 60A)
• FRD included between emitter and collector
• Fourth generation IGBT

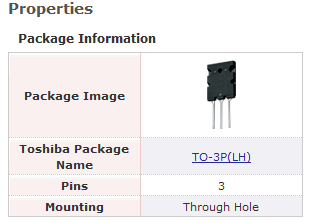

• TO-3P(LH) (Toshiba package name)
