Part Number : 5L0380R
Function :Fairchild Power Switch(FPS)
Manufacturer : Fairchild Semiconductor
Pinout :
Description
The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC.

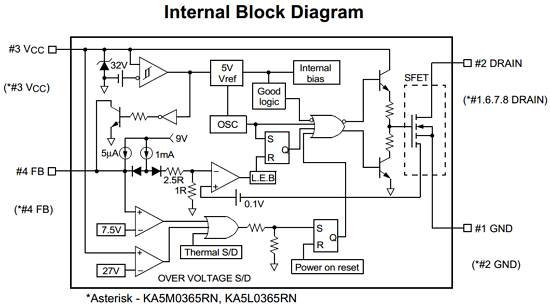

Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry.
Datasheet PDF Download
Other datasheets in the file : 5H0380R, 5L0380R, 5LO380R, 5MO380R, KA5H0380R
