Part Number : 5962-9665801QDA
Function : HEX SCHMITT-TRIGGER INVERTERS
Manufacturer : Texas Instruments

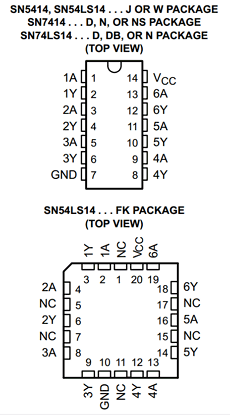

Pinout :
Description
Each circuit functions as an inverter, but because of the Schmitt action, it has different input
threshold levels for positive-going (VT+) and negative-going (VT–) signals.
These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals.
Datasheet PDF Download
