Part Number : 48M033F
Function :Three-Terminal Low Dropout Voltage Regulator / Maximum output current of 0.5 A
Manufacturer : Toshiba

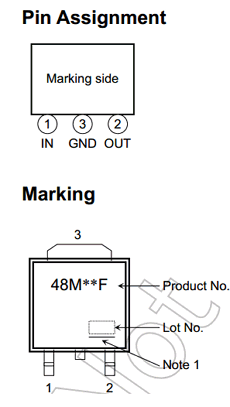

Pinout :
Description
The TA48M**F series consists of fixed-positive-output, low dropout regulators with an output current of 500 mA (max). In response to the need for low voltage devices, the series offers devices with low output voltages of 2.5 V, 3.3 V etc.
• Low standby current: 800 μA (typ.)
• Low dropout voltage: 0.65 V (max) @IOUT =0.5 A
• New PW-Mold package (Surface-mount type)
Datasheet PDF Download
Other datasheets in the file : 48M025F, 48M033F, 48M0345F, 48M03F, 48M04F
