Part Number : 47C201P
Function : CMOS 4-Bit Microcontroller
Manufacturer : Toshiba

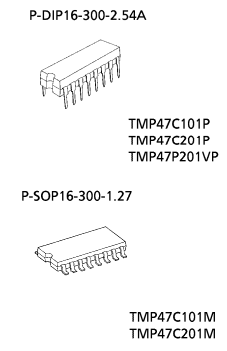

Pinout :
Description
The TMP47C101/201 are high speed and high performance 4-bit single chip microcomputers, intergarting ROM, RAM, input / output ports and timer / counters on a chip.
The TMP47C101/201 are the standard LSI in the TLCS-47E series. In addition, they have the output port with LED direct drive capability.
Datasheet PDF Download
Other datasheets in the file :
47C101M,47C101P,47C201M,47C201P,47P201VP
