Part Number : 3F9454B
Function : S3F9454B, 3F9454B / 8-BIT CMOS MICROCONTROLLER
Manufacturer : Samsung

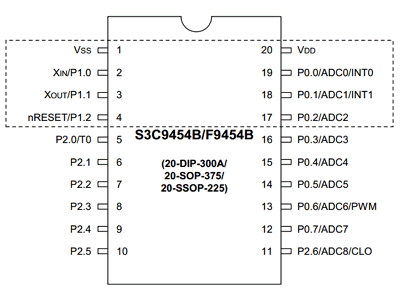

Pinout :
Description
The S3C9454B/F9454B single-chip 8-bit microcontroller is designed for useful A/D converter application field. The S3C9454B/F9454B uses powerful SAM88RCRI CPU and S3C9454B/F9454B architecture. The internal register file is logically expanded to increase the on-chip register space.
The S3C9454B/F9454B has 4K bytes of on-chip program ROM and 208 bytes of RAM. The S3C9454B/F9454B is a versatile general-purpose microcontroller that is ideal for use in a wide range of electronics applications requiring simple timer/counter, PWM. In addition, the S3C9454B/F9454’s advanced CMOS technology provides for low power consumption and wide operating voltage range.
Datasheet PDF Download
Other datasheets in the file :
3C9454B,3F9454B,S3C9454B,S3F9454B
