Part Number : 34063AP1
Function : DC-TO-DC CONVERTER CONTROL CIRCUITS
Manufacturer : Unspecified

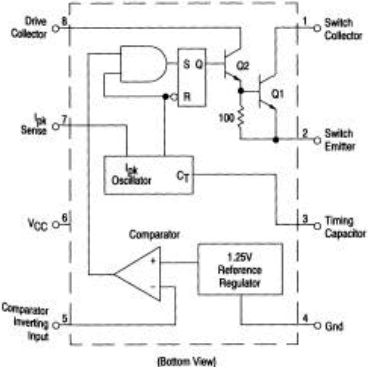

Pinout :
Description
The SL34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch.
This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components.
Datasheet PDF Download
Other datasheets in the file :
34063AD,34063AP1,SL34063A
