Part Number : 2SK3354-Z
Function : SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE
Manufacturer : NEC => Renesas Technology

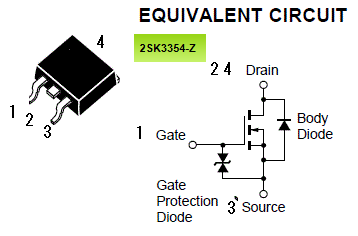

Pinout :
Description
The 2SK3354 is N-channel MOS Field Effect Transistor designed for high current switching applications.
| Nch/Pch | Nch |
|---|---|
| Number of Channels | Single |
| VDSS (V) max. | 60 |
| ID (A) | 83 |
| RDS (ON) (mohm) max. @10V or 8V | 0.008 |
| Mounting Type | Surface Mount |

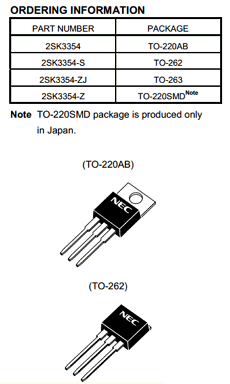

| Package Type | MP-25Z/TO-220SMD |
| Production Status | Mass Production |
Datasheet PDF Download
Other datasheets in the file :
2SK3354,2SK3354-S,2SK3354-Z,2SK3354-ZJ,K3354
