Part Number : 2SK2412
Function : MOS FIELD EFFECT TRANSISTOR
Manufacturer : NEC => Renesas Technology

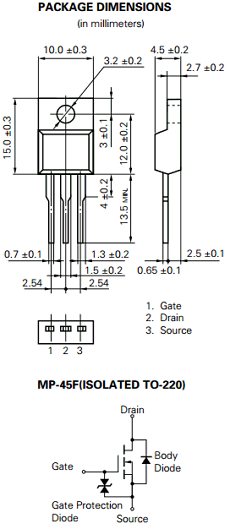

Pinout :
Description
The 2SK2412 is N-Channel MOS Field Effect Transistor designed for high speed switching applications.
FEATURES
• Low On-Resistance
RDS(on)1= 70 mΩMAX. (@ VGS= 10 V, ID= 10 A)
RDS(on)2= 95 mΩMAX. (@ VGS= 4 V, ID= 10 A)
• Low CissCiss= 860 pF TYP.
• Built-in G-S Gate Protection Diodes
• High Avalanche Capability Ratings
