Part Number : 2SC2412K
Function : General purpose transistor (50V, 0.15A)
Manufacturer : ROHM Semiconductor

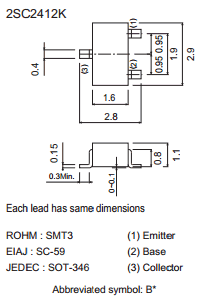

Pinout :
Description
* Epitaxial planar type
* NPN silicon transistor
1. Low Cob. Cob=2.0pF (Typ.)Cob=2.0pF (Typ.)
2. Complements the 2SA1037AK / 2SA1576A / 2SA1774H / 2SA2029.
Datasheet PDF Download
Other datasheets in the file :
2SC2412K,2SC4081,2SC4617,2SC5658,C2412K
